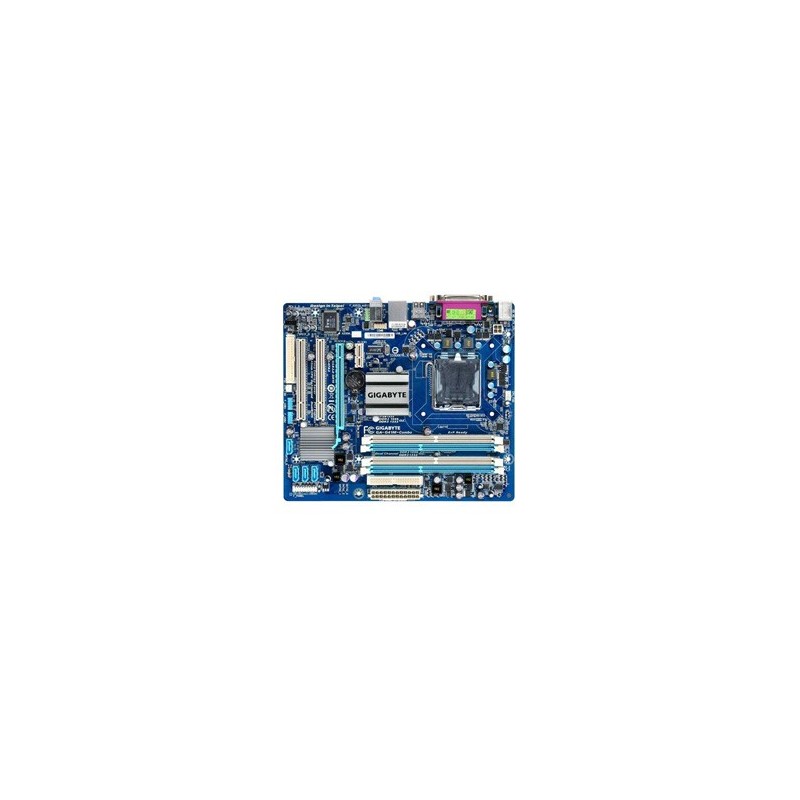

CARTE MERE NEUVE Gigabyte G41M- Combo - 04286 - Gar.1 an

CARTE MERE NEUVE Gigabyte G41M- Combo - 04286 - Gar.1 an

99,00 €
TTC
Ref.G41/SK775

Modèle GA-G41M-COMBO

Quantité
Délai 5/6 jours

Processeur
  1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
  2. L2 cache varies with CPU
FSB
  1. 1333/1066/800 MHz FSB
Chipset
  1. North Bridge: Intel® G41 Chipset
  2. South Bridge: Intel® ICH7
Mémoire DDR3:
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
DDR2:
  1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR2 1066(O.C.)/800/667 MHz memory modules
(Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta- neously is not supported. Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Carte Graphique Intégrée North Bridge:
  1. 1 x D-Sub port
Audio
  1. VIA VT1708S codec
  2. High Definition Audio
  3. 2/4/5.1-channel
  4. Support for S/PDIF Out
  5. Support for CD In
Réseau
  1. 1 x Atheros AR8151 chip (10/100/1000 Mbit)
Port d'expansion
  1. 1 x PCI Express x16 slot, running at x16
  2. 1 x PCI Express x1 slot
  3. 2 x PCI slots
Interface de Stockage South Bridge:
  1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
  2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718F chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB South Bridge:
  1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Connecteurs d'entrées/sorties internes
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 4 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x system fan header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x CD In connector
  11. 1 x S/PDIF Out header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x serial port header
  14. 1 x clearing CMOS jumper
Connecteur du Panneau Arrière
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x parallel port
  4. 1 x serial port
  5. 1 x D-Sub port
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)
Contrôleur d'Entrée/Sortie
  1. iTE IT8718F
Monitorage Matériel
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU fan speed control (Note 2)
BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Fonctionnalités Exclusives
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 3)
  8. Support for Easy Energy Saver (Note 4)
  9. Support for SMART Recovery
  10. Support for Auto Green
  11. Support for ON/OFF Charge
  12. Support for Q-Share
Logiciels Fournis
  1. Norton Internet Security (OEM version)
Système d'Exploitation
  1. Support for Microsoft® Windows® 7/Vista/XP
Dimensions
  1. Micro ATX Form Factor; 24.4cm x 21.0cm
Remarque
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Note (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
(Note 3) Available functions in EasyTune may differ by motherboard model.
(Note 4) Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver.
G41/SK775
Nouveau
